Note : The item is Balanced version,
If you need other vesion,please contact us .
(plesse leave a message for us which version do you want ? )
Standard version: suitable for starting current below 60A, power 100W below the drill.(Not balanced function)
Enhanced version: for starting current below 80A, power 135W below the drill.(Not balanced function)
Balanced version: suitable for starting current below 80A, power 135W below the drill.(with balance)
3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery)
Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)
Product Size: 41 * 60 * 3.4mm (Balanced version)
Product weight: 8.8g (standard / enhanced version), 9.8g (balanced version)
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)
Continuous charge current (upper limit): 20A
Note 1: The successful start of the drill requires three 15C-20C power battery,
or six 10C-15C power battery (ordinary 18650 can not start the drill!!).

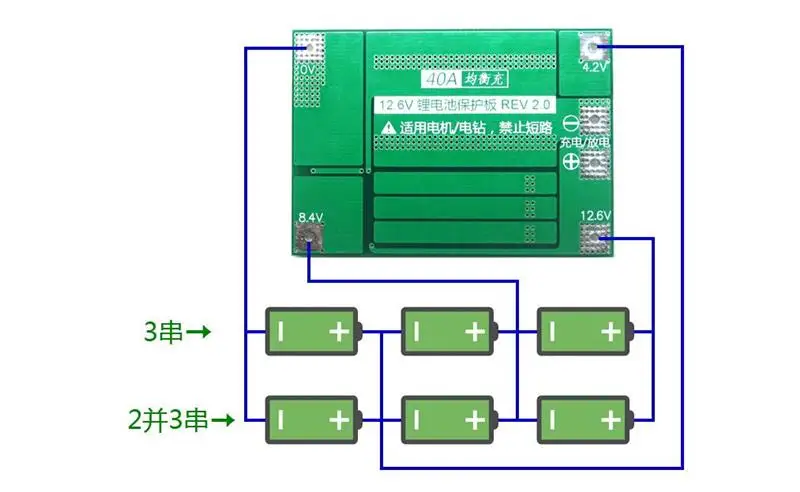

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor
(withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive
and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 3 groups of batteries in series, please ensure that the voltage of each group of batteries,
if not the same, please fill each battery separately and then use in series.
The The Discharge test, the voltage drop faster battery that group is poor battery.
For some of the poor basis of electronic customers to explain:
balanced charge is only auxiliary functions, try not to put a good battery
and poor battery mixed together! 3 sets of battery capacity /
resistance closer to the better!
(2 good battery +1 Poor battery use effect = 3 poor battery use effect).
1 X Balanced version PCB.
